Royal (RY)
Functions available:
RY500: Entry
RY501: Passage
RY502: Privacy
RY515: Single Dummy [Specify Handing L/R]
RY500TP - Entry with Push Button
RY502TP - Privacy with Push Button
Functions available:
RY500: Entry
RY501: Passage
RY502: Privacy
RY515: Single Dummy [Specify Handing L/R]
RY500TP - Entry with Push Button
RY502TP - Privacy with Push Button
Functions available:
RY500: Entry
RY501: Passage
RY502: Privacy
RY515: Single Dummy [Specify Handing L/R]
RY500TP - Entry with Push Button
RY502TP - Privacy with Push Button
-

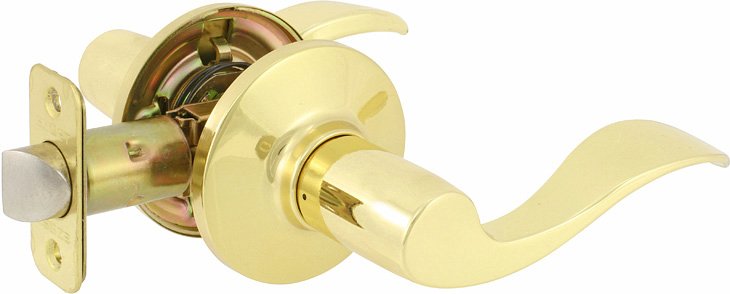

Polished Brass (US3)
Polished Chrome (US26)
Satin Nickel (US15)
Tuscany Bronze (US12P)
Matte Black (US19)
SPECIFICATIONS
Grade 3
Door Prep
2-1/8” cross bore, 1” edge bore.
Latch Face: 1” x 2-1/4”
Backset
Fits both 2-3/8” and 2-3/4”.
Door Fitting
1-3/8”~ 1-3/4” door thickness
Special Order: 2” door thickness
Exposed Trim
Zinc or Stainless Steel. Lever is zinc alloy.
Keys
Key as requested (KA, KD, MCK, MK, GMK)
Cylinder
KW1 Standard. SC1 Optional.
Latch
2-3/8” and 2-3/4” adjustable (9079)
Bolt: 1/2” throw
Faceplate: 1” x 2-1/4” round corner.
Strike
Full lip 1-3/4” x 2-1/4” round corner (9103)
Door Handing
Reversible, suitable for both right and left handing
